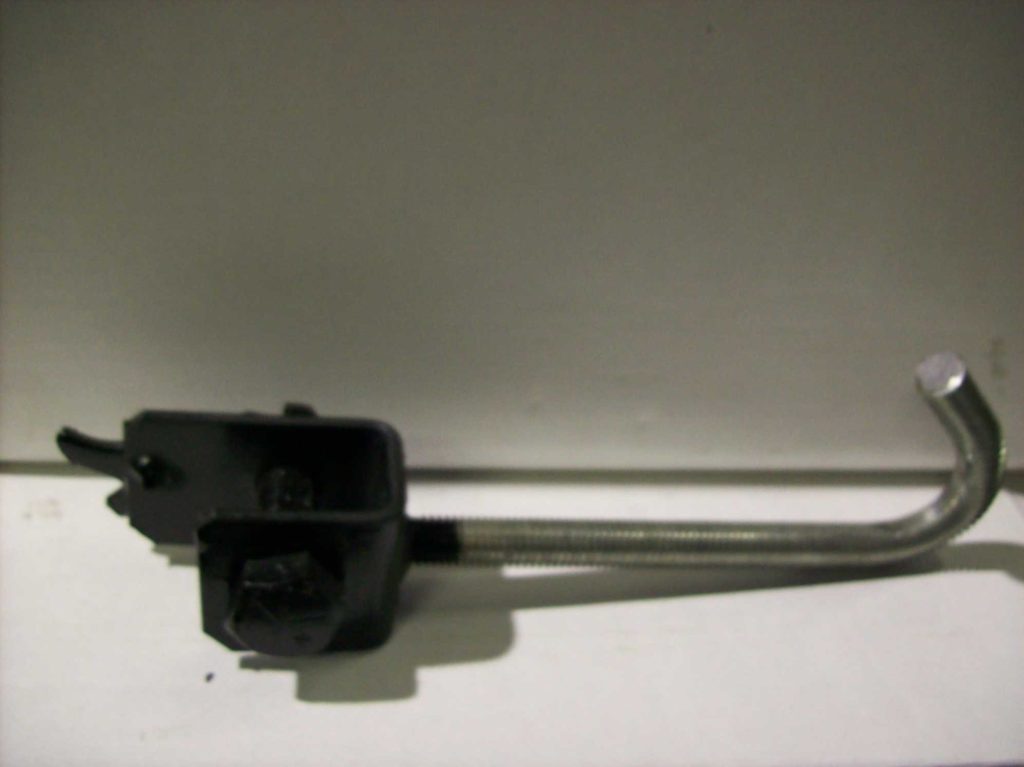

J-Hook Anchor
SKU JH-1
A specialized tie-down anchor with a J-hook termination for applications where a strap, chain or cable loop needs a quick, positive hook-up point at grade.
- Origin
- Ontario, Canada
Call 905-847-5294 or request a quote — we answer the phone.
- Made in our own shop — Cast to B&R patterns, then finished, welded and assembled in Ontario.
- Proven since 1988 — The same Load Lock design has been holding structures down for 35+ years.
- Talk to a real person — Call 905-847-5294, Monday to Friday. Most quotes go out within two business days.
- Dealer and volume pricing — Price breaks by the case and by the pallet for installers, marinas and distributors.
Shipping & lead time
Orders ship from our Ontario shop. Small anchors and hardware go by parcel; pallet quantities ship LTL across Canada. Pickup can be arranged.
Shipping is calculated at checkout. If a rate looks wrong for your quantity, call us and we will quote it directly.
Volume & dealer pricing
Installers, dealers, marinas and distributors get price breaks by the case and by the pallet. Tell us the annual quantity and we will put a price list together.
Match the anchor to the ground
What is your ground made of?
Holding power is a function of soil, not just hardware. Pick the class that matches your site and we'll point you at the right anchor. If you are between classes, use a torque probe — 200 to 350 in-lb puts you in the Class 4 to 6 range where the Load Lock performs best.
Figures are from B&R testing in virgin soil. Holding capacity varies with site conditions, moisture and installation. Test on site where the load is critical, and involve an engineer for Class 8 ground.
Data sheet
Specifications
A specialized tie-down anchor with a J-hook termination for applications where a strap, chain or cable loop needs a quick, positive hook-up point at grade.
Specifications
- Part number
- JH-1
- Made in
- Ontario, Canada
Need a drawing, a CAD file or a certificate of origin for a tender? Call 905-847-5294 and we will send it.
Complete the tie-down
An anchor on its own is half a job
Anchors resist uplift. Frame ties stop a structure sliding sideways on its supports. Leveling jacks hold it flat through freeze-thaw. Use them together.
Frame Tie
Frame ties connect a B&R earth anchor to the structure. They run from the anchor's ratchet...
Price on request →
Leveling Jack
Adjustable steel leveling jacks that replace stacked concrete blocks under portable buildings, mobile homes and site...
Price on request →
Leveling Plate
Stamped steel top plates for B&R leveling jacks. The standard 3" x 3" plate has a...
Price on request →
U-Shaped Leveling Plate
A U-shaped top plate that wraps around a structural channel so the jack can't walk out...
Price on request →
The rest of the line
More B&R earth anchors
Load Lock Complete Earth Anchor
Virgin soil, Class 3–6
From $23.00
Load Lock Anchor Casting
The bare Load Lock casting for installers and OEMs who rig their own cable and hardware....
Price on request →
Arrowhead Earth Anchor
Driven ground — soil, compacted fill
Price on request →
X Model Anchor (Loose Rock)
Loose heavy rock, gravel, fill
Price on request →
Expansion Anchor (Solid Rock)
Solid rock / bedrock (Class 1)
Price on request →
Concrete Anchor with Anchor Bolts
Concrete (Class 9)
Price on request →
Embankment Control Anchor
~5,800 lb @ 36" (Class 5)
Price on request →
Contractors, dealers & distributors
Buying by the case or the pallet?
We supply mobile home and portable building installers, marinas, farm and hardware stores and industrial distributors right across Canada. Tell us the annual quantity and we will send a dealer price list and lead times.
Before you buy
Questions we get asked
How deep does the anchor have to go?
Deep enough that it is planing against undisturbed soil, which depends on the ground. In Class 5 medium-dense sandy clay a #68 is typically set at 30" and a #88 at 36". Softer ground gives less resistance, so the anchor goes deeper. Use the soil class selector above as a starting point.
How do I know what soil class I'm in?
A soil test probe reads sub-soil resistance without taking core samples. Torque readings of roughly 200 to 350 in-lb put you in the Class 4 to 6 range, which is where the Load Lock performs best. Lower readings mean softer soil and a deeper set. If the load is critical, test on site.
Do I need frame ties as well as anchors?
Yes. An anchor resists uplift — the wind trying to lift the structure. A frame tie stops the structure sliding sideways off its supports. On any mobile or portable building you want both, and you want the ratchet kept with at least three full turns of strap on the drum.
What does frost do to a set anchor?
Frost raises and lowers the ground through the season, which can slacken or tighten a strap. Check ratchets seasonally, loosen and re-tension as needed, and keep three full turns on the drum.
Can I buy just the casting?
Yes. Installers and OEMs who rig their own cable and hardware buy the bare Load Lock casting in #68 (LL680) and #88 (LL880). Same sand-cast aluminum alloy to ASTM B26-72, same patterns, finished in our shop.
Where do these ship from, and can I pick up?
Everything ships from our own Ontario shop. Small anchors and hardware go by parcel; pallet quantities go LTL across Canada. Pickup can be arranged — call 905-847-5294 to set a time.
